EVOLIS Mobility: LED portable radar speed signs

The EVOLIS Mobility portable radar speed sign helps you reduce speeds by 25%, no matter the road or motorway. Easily transportable with a portable format, this road safety solution was designed to let you change locations seamlessly.

  • Portable: You can change the location of your radar speed sign with ease to reach as many drivers as possible.
  • Exceptional affordability: The streamlined design of our portable radar speed sign offers an affordable solution to meet the needs of both large and small communities.
  • Dynamic and LED display: Embrace our vivid, long-range LED displays to present speed information and ensure that drivers receive clear, impactful messages that encourage safer driving behaviour. Choose between a friendly smiley or a cautionary exclamation triangle to best convey your traffic messages.

Do you have a question about installing an EVOLIS Vision Speed Indicator Device? Need a quote?

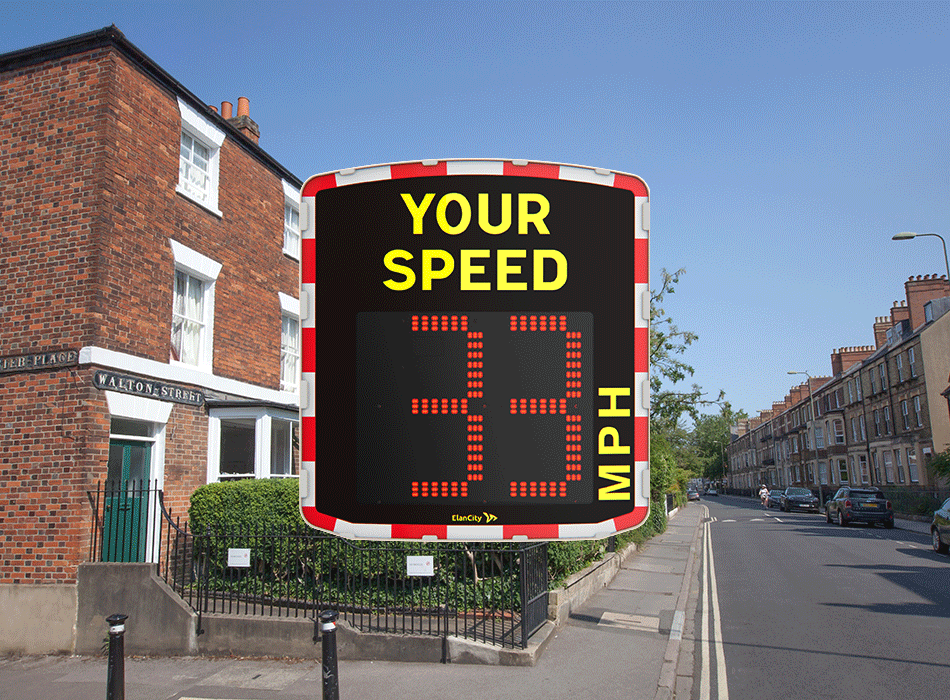

EVOLIS Mobility: Mobile radar speed signs in action

Discover a meticulously crafted approach to road safety designed for maximum impact. more than a short-term solution, a portable radar speed sign system offers a game-changing strategy that addresses the issue of excessive speeds head-on. Elevate the safety of your roads with EVOLIS Mobility, a portable speed signage solution trusted by over 10,000 communities around the world.

Portable radar speed sign specifications

Display specifications
Configuration
Power specifications
Traffic statistics
Other technical information

Speed digits

Speed digits3 digits (0 to 199)
Dimensions380 x 450 mm
ColoursGreen, amber and red
Visibility3-row thick LEDs

Smileys

ColoursGreen and red
Dimensions300 x 300 mm

LEDs

OSRAM CMSHigh-luminosity, ultra-low consumption
Service life> 100,000 hours

Photosensitive cell

Photosensitive cell High-precision sensor for adaptation to light

Configuration settings

LocalUSB and Bluetooth® (PC or Android/IOS mobile appliance with the mobile app)
Selector dial for pre-set speed bands
Remote4G modem with web interface (for the operational status of the appliance and statistical analysis)

Batteries

BatteriesLead-acid 12 V/22 Ah
Weight for one battery6.2 kg
Dimensions for one battery181 x 76.2 x 167 mm (L x W x H)

Charging by solar panel

Power100 W solar panel
Dimensions806 x 680 x 35 mm (L x W x H)
OtherMonocrystalline high-output cells
Smart charging management

Charging from street lighting or grid

Internal power220 V
OtherSmart charging management
Integrated protection fuse

Traffic statistics

AnalysisIn both traffic directions (incoming/outgoing)
DataAverage and maximum speeds, number of vehicles, time stamps and percentiles (V30/V50/V85)
Memory16 Mb. Up to 5 million vehicles can be recorded.
OperationWith the software package. Output exportable in Microsoft Excel, CSV or PDF format.

Housing

Dimensions710 x 770 x 160 mm (W x H x D), with two battery slots
Weight9.2 kg (excl. batteries)
MaterialABS resin, anti-UV, one-piece injection moulded body
ColourGrey, through dyed
Ingress protectionIP65
SecurityLock and specific key, with provision for padlock
User accessExternal access to batteries, the speed change interface and the USB port. Secured by two locks.

Front face

MaterialPolycarbonate with a non-reflective surface
Decoration and textRegulatory red and white border with silkscreened text
“Your speed”Reverse silkscreen printing
ShapeConvex for optimum protection against projectiles

Detection

RangeUp to 300 metres
AccuracyWithin 1%
Angle of detection33 degrees
Frequency24.200 GHz

Compliance

ComplianceRED Directive 2014/53/EU
RoHS Directive 2011/65/EU
WEEE Directive 2012/19/EU

Discover EVOLIS Vision as well!

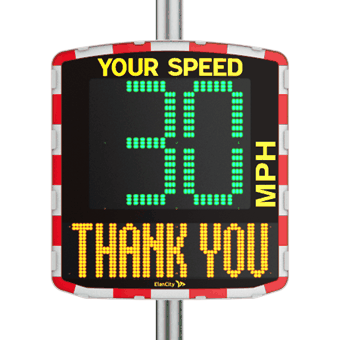

The Speed Indicator Device, with variable message display. Available in triangle or smiley version.
